Description

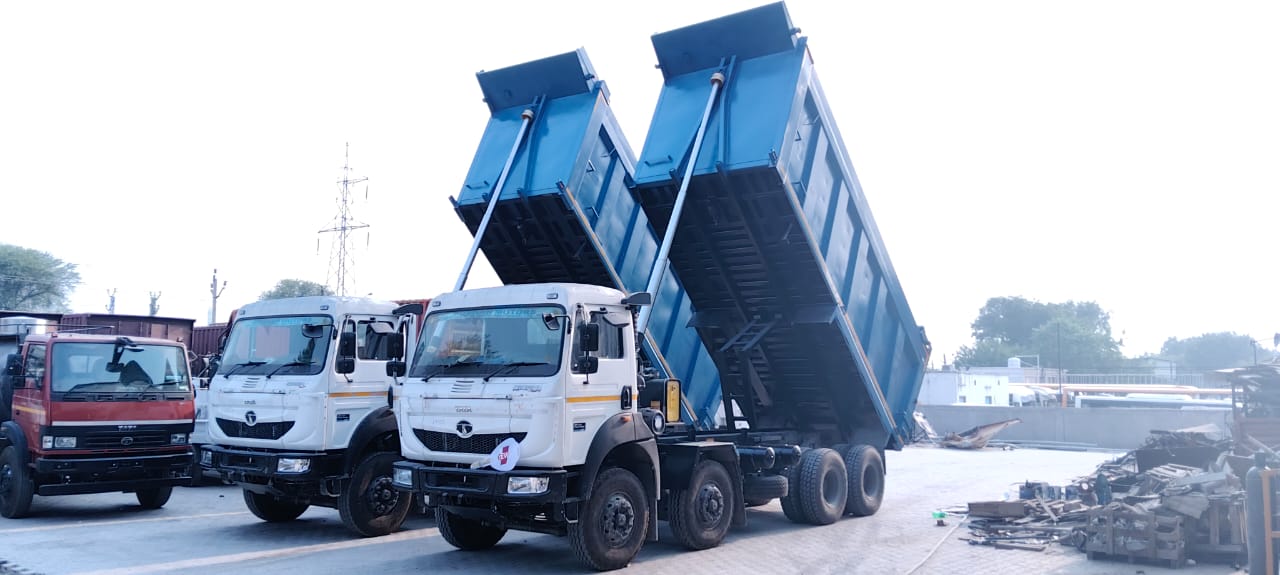

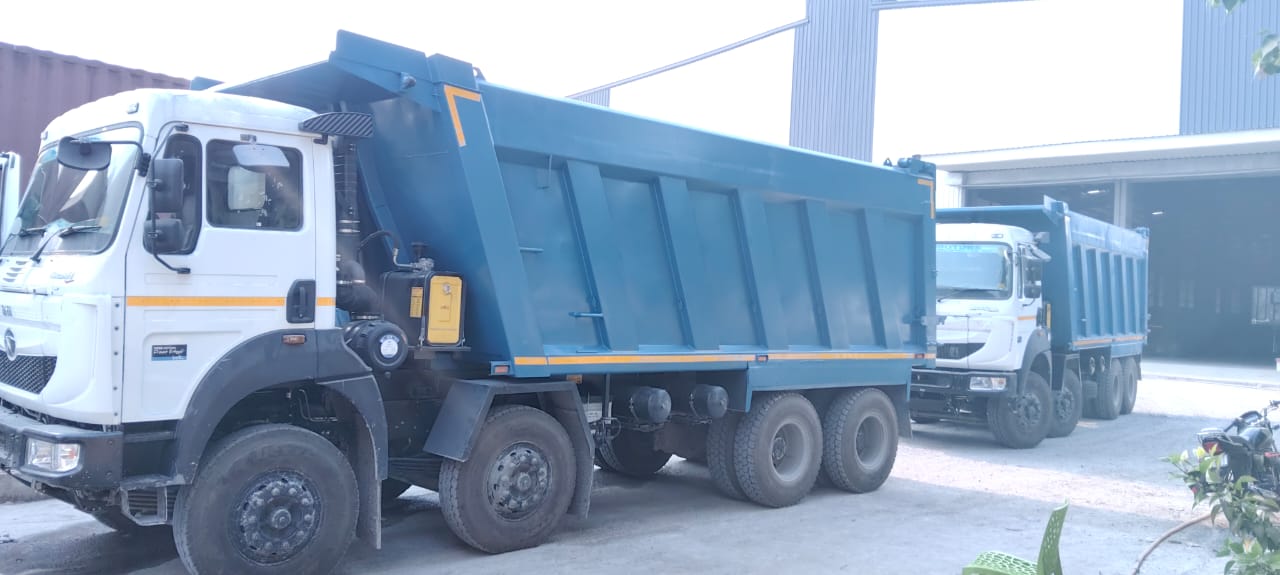

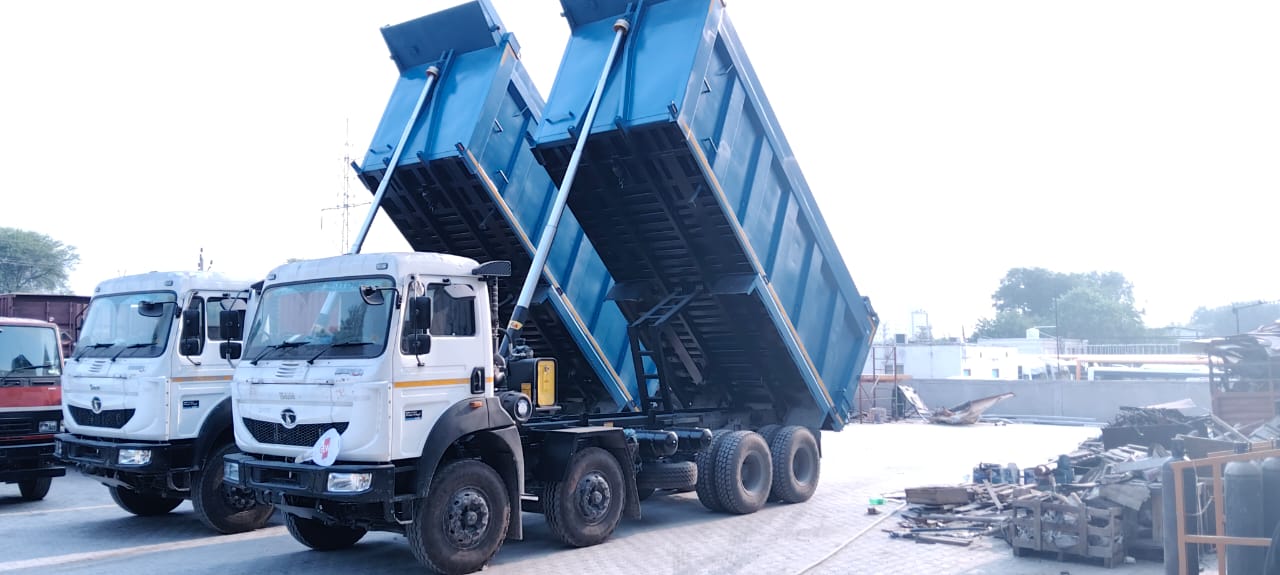

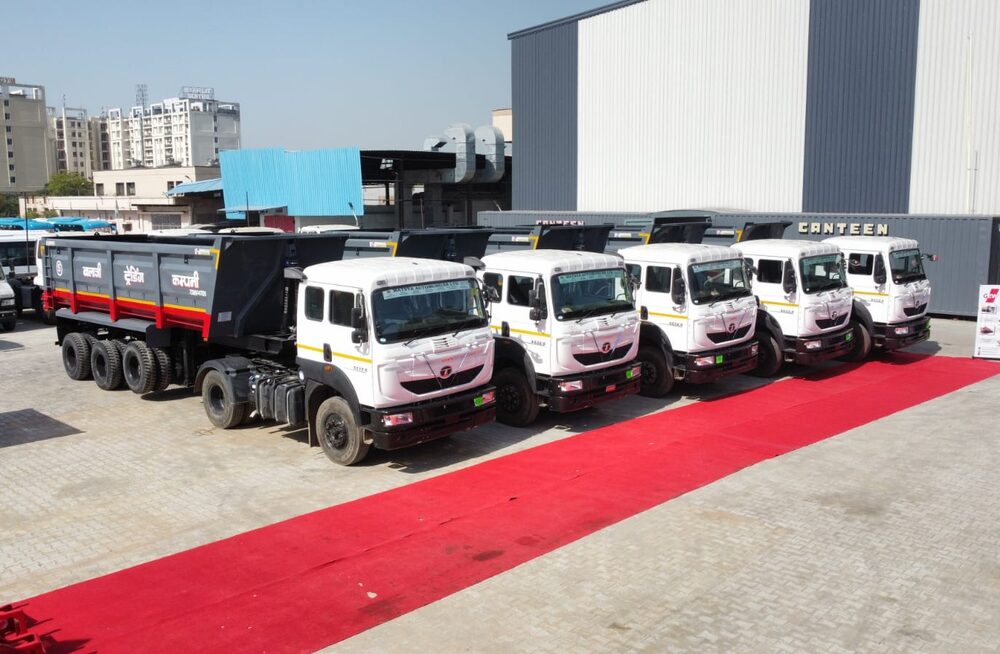

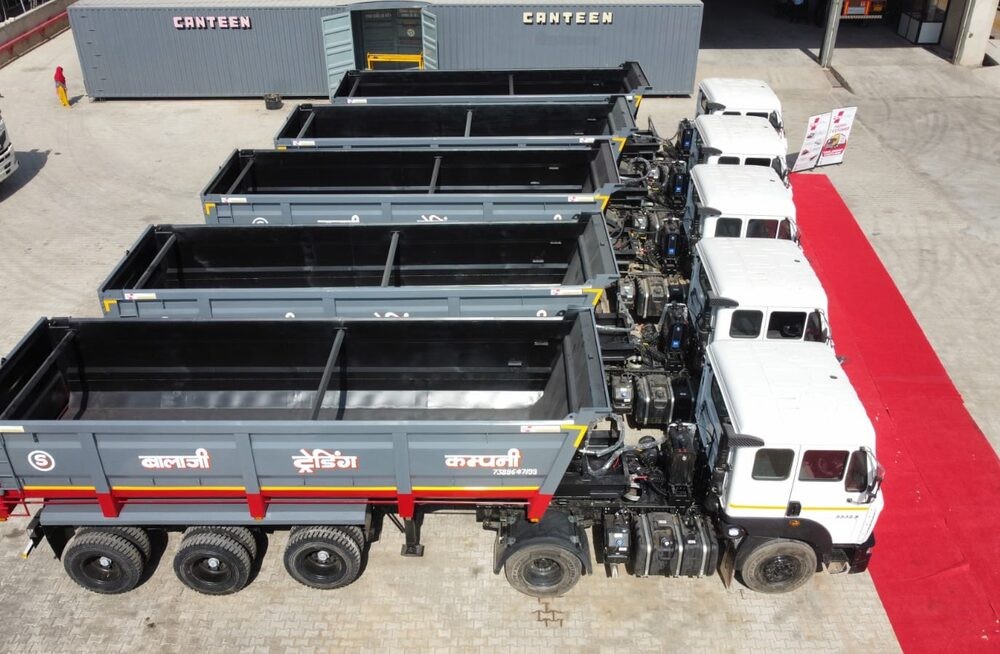

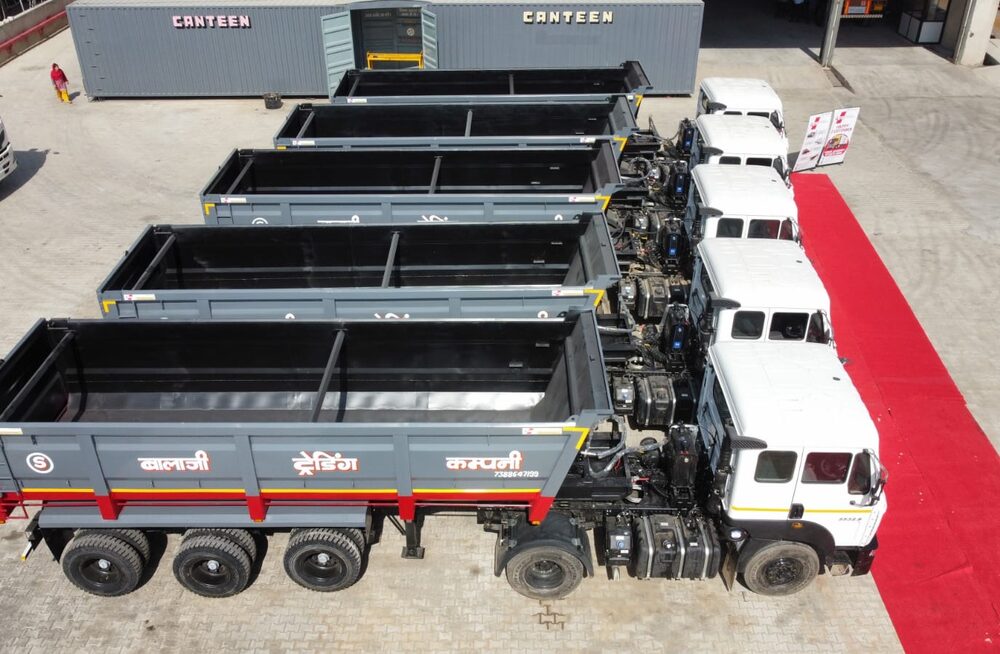

| About Tipper Body:- | GEW construction tippers are designed for typical construction applications carrying for instance: sand & gravel, construction material, wet sand, asphalt, debris, garbage, coal or overburden & small rocks. |
| Model Name: | Box Type , Rock Body, Mining Body, 3-Way Body, Coal Transportation Type |
| Size | 10 CBM to 29 CBM |
| Load Capacity | AS PER CMVR Rule |
| HYDRAULIC KIT | HYVA , HIDROMAS ,WIPRO ,IPH |
| Chassis frame | 1) Fabricated with high Grade Steel structure frame, high Grade Cross member 2) The structure ensures maximum load bearing capacity with low Unladen weight Construction also ensures maximum tensional stability & structural rigidity. |
| PLATFORM | The platform will be constructed with 4 /5 /6 mm Thk IS 2062 sheet duly strengthened and reinforced to the body runner. |
| BODY PANELS | Side Panel/Head Board and Tail Door will be made Hardox 450, Bsk46, 5mm/6mm Thk sheet duly strengthened and reinforced with folded stiffeners. |
| ELECTRICAL | 24 V DC electrical system as per CMVR |
| WET KIT | Shall include Pump, Tank, Return line filter, Tipping valve and Hydraulic hoses. Operating pressure 170 BAR. Multi Stage Cylinder |
| SURFACE PREPARATION | Trailer surface shall be Shot blasted and cleaned as ASTM B117 |
| PAINTING | Two coats of Epoxy paint shall be provided with Primer |
| OTHER FITMENT | Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR. |
| Application: | Construction Industry, Mining Sector, Agriculture, Waste Management, sand & gravel, construction material, wet sand, asphalt, debris, garbage, coal or overburden & small rocks. |
