Description

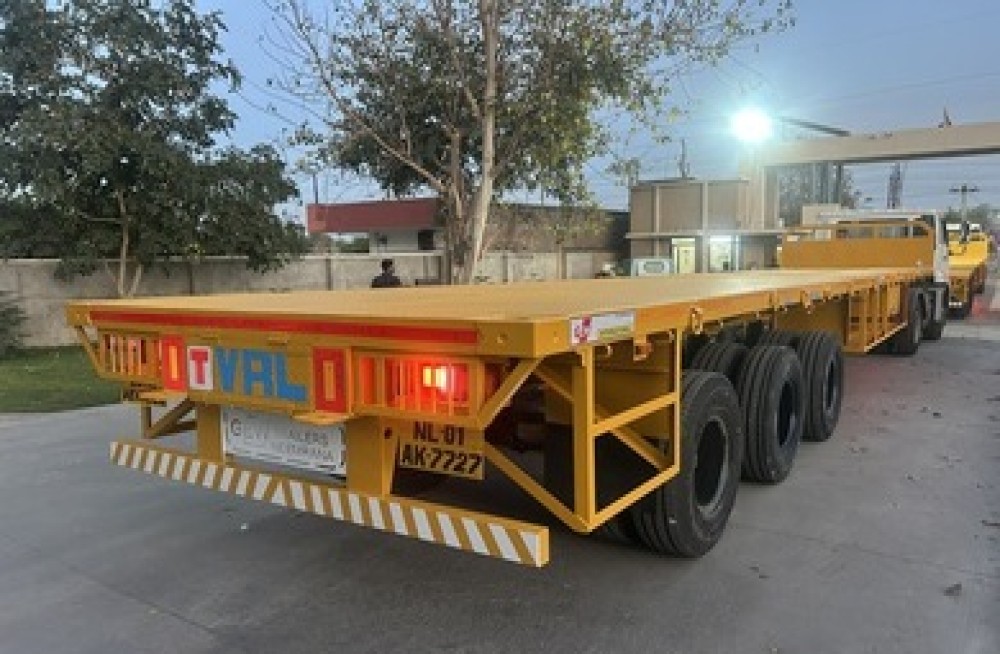

| Model Name | Standard Flatbed Trailer,Extendable Flatbed Trailer,Drop Deck (Low Bed Flatbed),Double Drop Trailer,Container Flatbed Trailer |
| Size | 24Ft to 45 ft or as per customer demand |
| Trailer Weight (Unladen) | 8-10 Ton (depending on size) |
| Load Capacity | Depending on size |
| Chasis | 1) Fabricated with high Grade Steel structure frame, high Grade Cross member 2) IS2062 E350 UB/NBP Rolled Beam make-SAIL/JSPL The structure ensures maximum load bearing capacity with low Unladen weight Construction also ensures maximum tensional stability & structural rigidity. |
| Platform | Super structure made with ISMC 200/150 member & heavy duty outer cross member supports. Platform is covered by 4mm MS sheet. |
| Landing Leg | Two speed landing leg shall be provided at the front end. (HDTPL/YORK) |
| Axles | 12T / 14T / 16T ( YORK/TATA/FUWA/JOST) |
| King Pin | 2” king pin equivalent to IS : 6763 Part I provided (bolted / Welded). (YORK/JOST) |
| Suspension | Heavy Duty Tridem / Tandem /Tandem + Lifting combo axle. (YORK/TATA) |
| Brakes | Twin line air brake system with coupled to tractor brake system. Trailer brakes are actuated from tractor. T 24 brake chamber shall be provided on all axles. Parking brake shall be manually actuated. (WEBCO) |
| Electrical | 24 V DC electrical system as per CMVR |
| Wet Kit | Shall include Pump, Tank, Return line filter, Tipping valve and Hydraulic hoses. Operating pressure 170 BAR. Multi Stage Cylinder : Model : FE169-4-4820 stroke length |
| Painting | Two coats of Epoxy paint shall be provided with Primer |
| Other Fitment | Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR. |
| Wheel Rim | 10.00 x 20 – 16 PR – 12 Nos. 7.50 x 20 – 12 Nos. |
| Tyre | APPOLO/ JK TYRE/VIKRANT/MRF/Others |
| Application | Cement Bags/ Loose Material/ Marble/ Coil/ Coal/Clinker/Aggregates/Iron Ore/Salt/Others |
| On Demand:EXTRAS | Trailer ABS/EBS system – Wabco / Haldex/ Knorr Bremse Make |
| Radial Tyres | |
| Tubeless Tyres & Discs |
