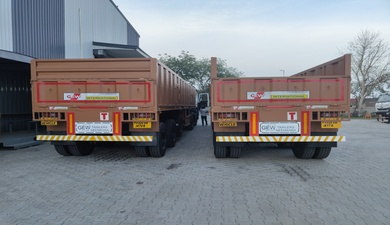

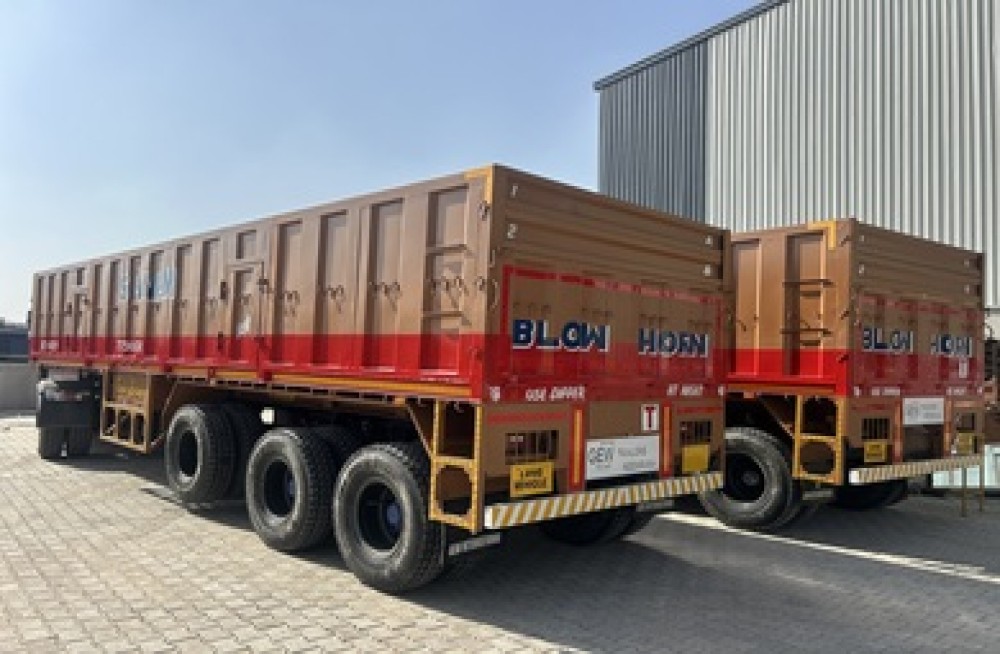

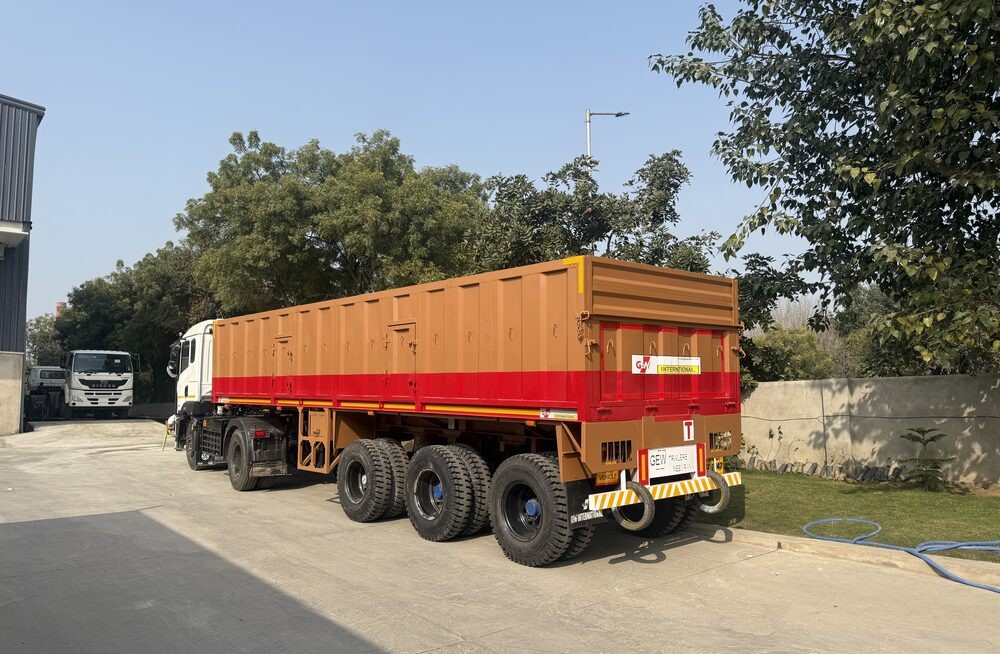

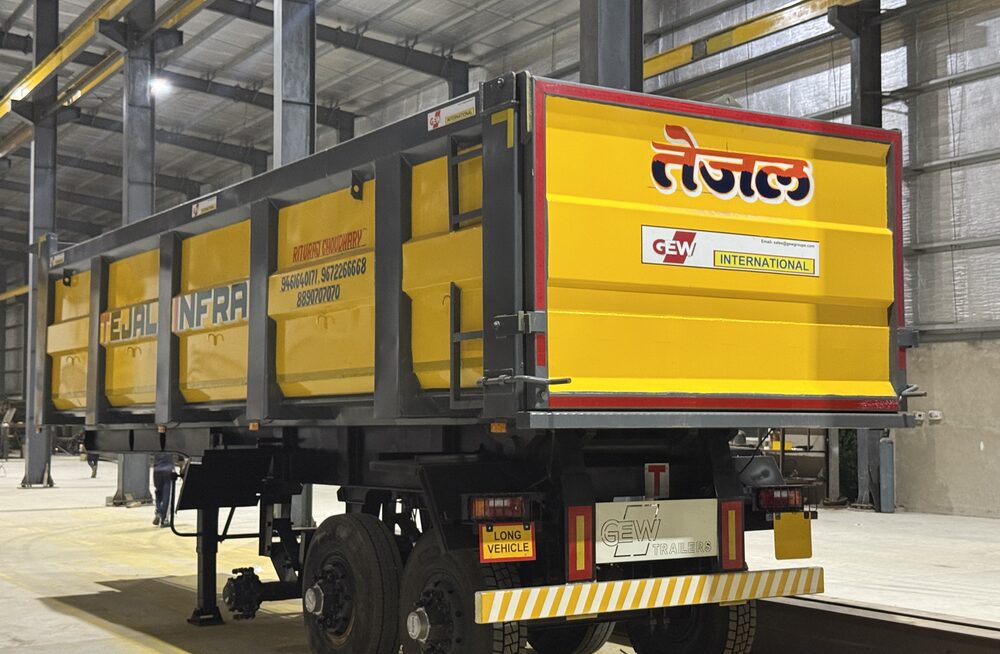

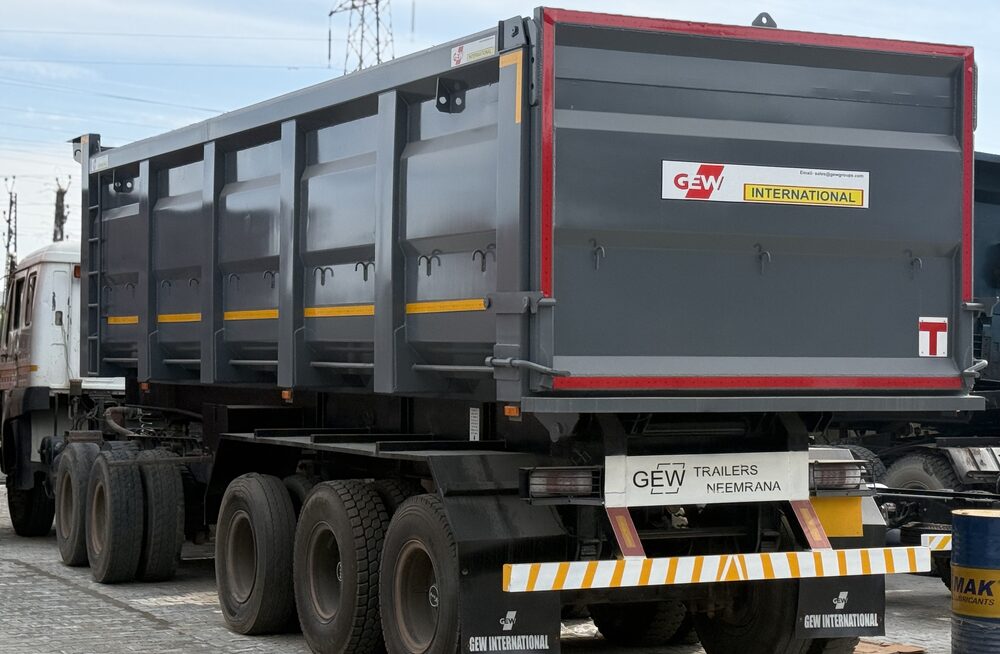

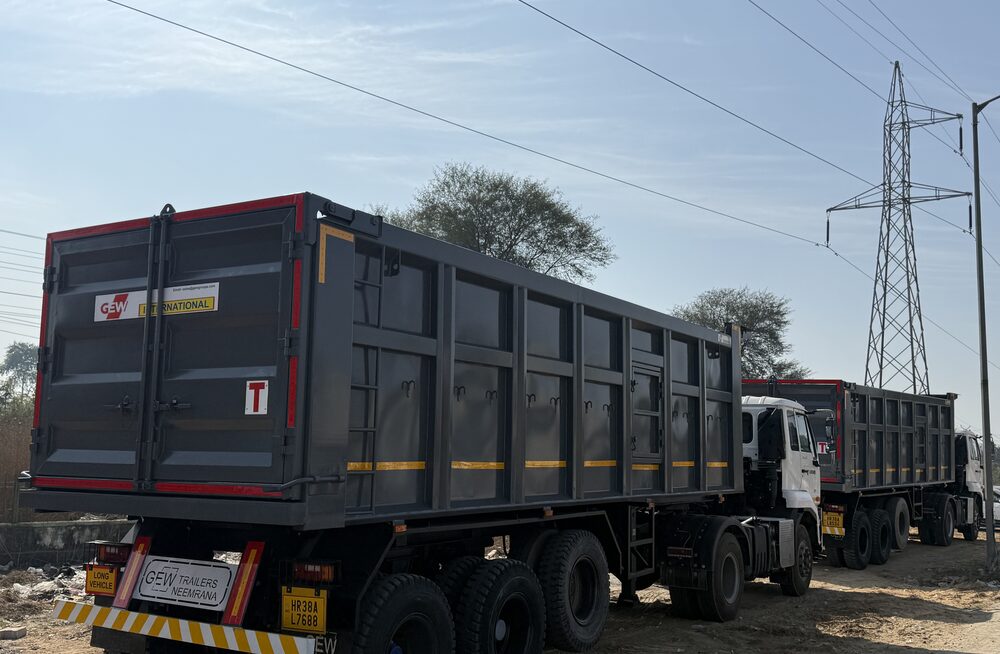

Sidewall Trailers

Send Inquiry

Just submit your details and we'll be in touch shortly.

Description

MODEL	Fixed Sidewall Trailer, Drop Sidewall Trailer,Removable Sidewall Trailer, High Sidewall Trailer, Low Sidewall Trailer
Size	26FT TO 45FT SIDE WALL CORRUGATED /PLAIN SHEET TRAILER
Trailer Weight (Unladen)	7-10T
Load Capacity	Depending on size
Chasis	1) Fabricated with high Grade Steel structure frame, high Grade Cross member 2) IS2062 E350 UB/NBP Rolled Beam make-SAIL/JSPL The structure ensures maximum load bearing capacity with low Unladen weight Construction also ensures maximum tensional stability & structural rigidity.
Platform	Super structure made with ISMB 125/150 member & heavy duty outer cross member supports.Platform is covered by 3mm Cheq. Sheet & 4mm Plain Sheet. Side Dala -2mm Thk with Sq Tube 50x50 & Rect-96x48mm.
Landing Leg	Two speed landing leg shall be provided at the front end. York /Kross/HDTPL/JAI
Axles	12T / 13T /14T / 15T/17T ( YORK/TATA/FUWA/JOST)
King Pin	2” king pin equivalent to IS : 6763 Part I provided (bolted / Welded). (YORK/JOST)
Suspension	Heavy Duty Tridem / Tandem /Tandem + Lifting combo axle.
Brakes	Twin line air brake system with coupled to tractor brake system. Trailer brakes are actuated from tractor. T 24 brake chamber shall be provided on all axles. Parking brake shall be manually actuated. (WEBCO)
Electrical	24 V DC electrical system as per CMVR
Surface Preparation	Trailer surface shall be Shot blasted and cleaned.
Painting	Two coats of Epoxy paint shall be provided with Primer
Other Fitment	Fitments such SUPD, RUPD, reflectors on both sides and rear shall be provided as per CMVR.
Wheel Rim	10.00 x 20 – 16 PR – 12 Nos. 7.50 x 20 – 12 Nos.
Tyre	APPOLO/ JK TYRE/VIKRANT/MRF/Others
Application	Sand , Aggregates,Bricks,Cement bags, Grains,Steel items, Machinery parts, Packaged goods, Multi-purpose usage
On Demand:EXTRAS	Trailer ABS/EBS system – Wabco / Haldex/ Knorr Bremse Make
	Radial Tyres
	Tubeless Tyres & Discs
