Description

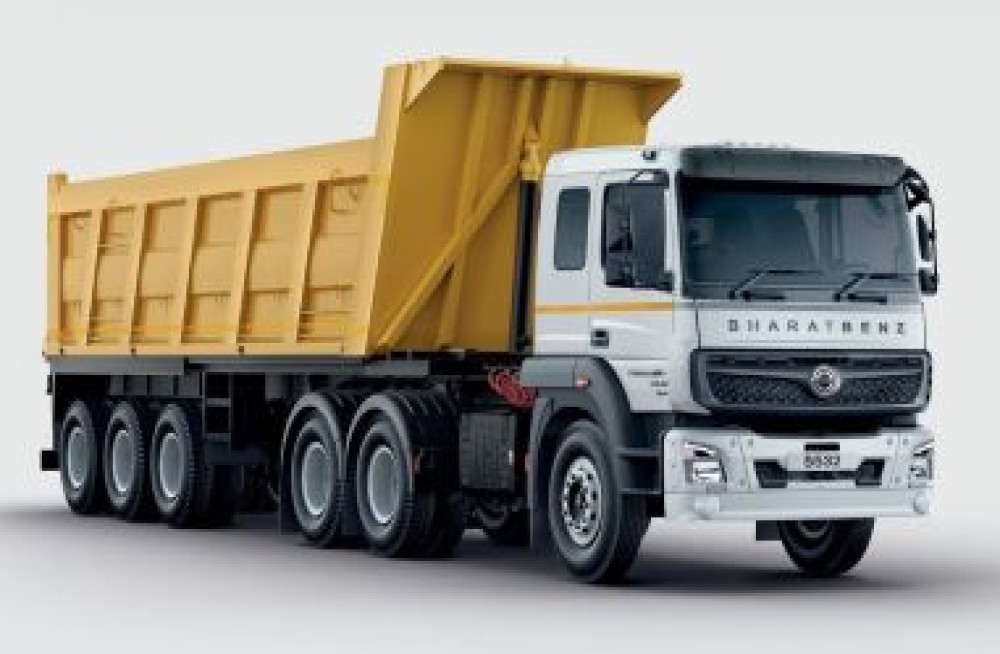

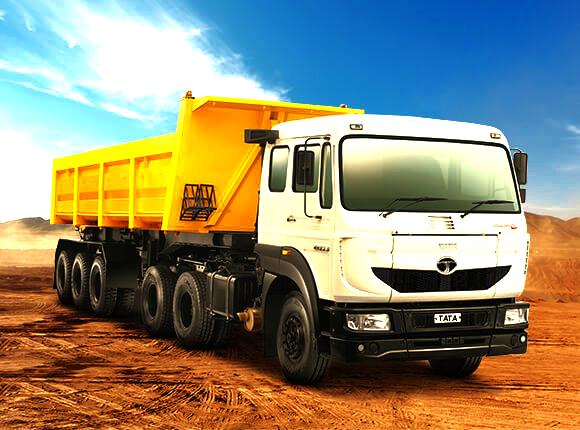

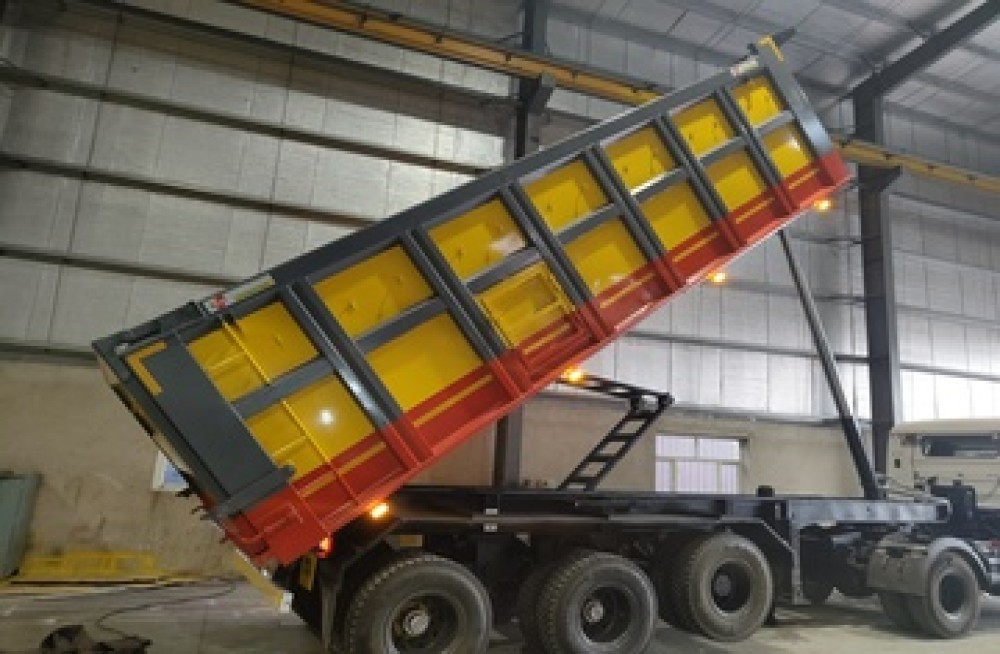

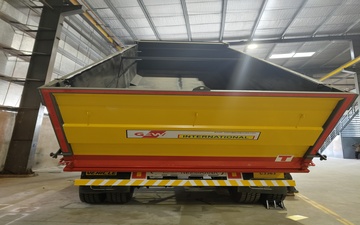

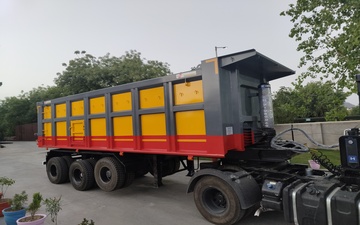

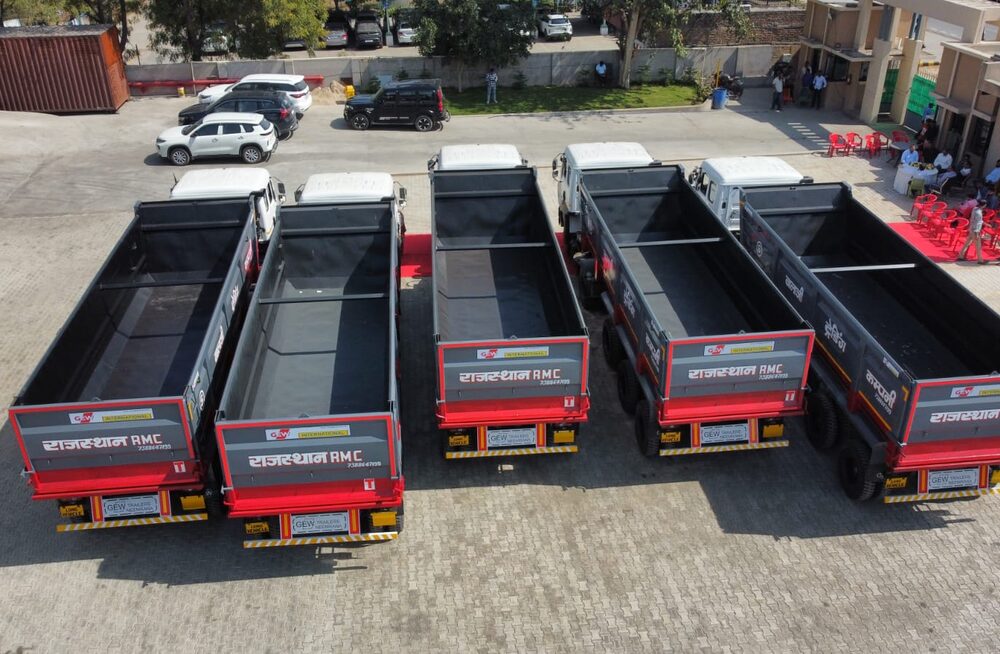

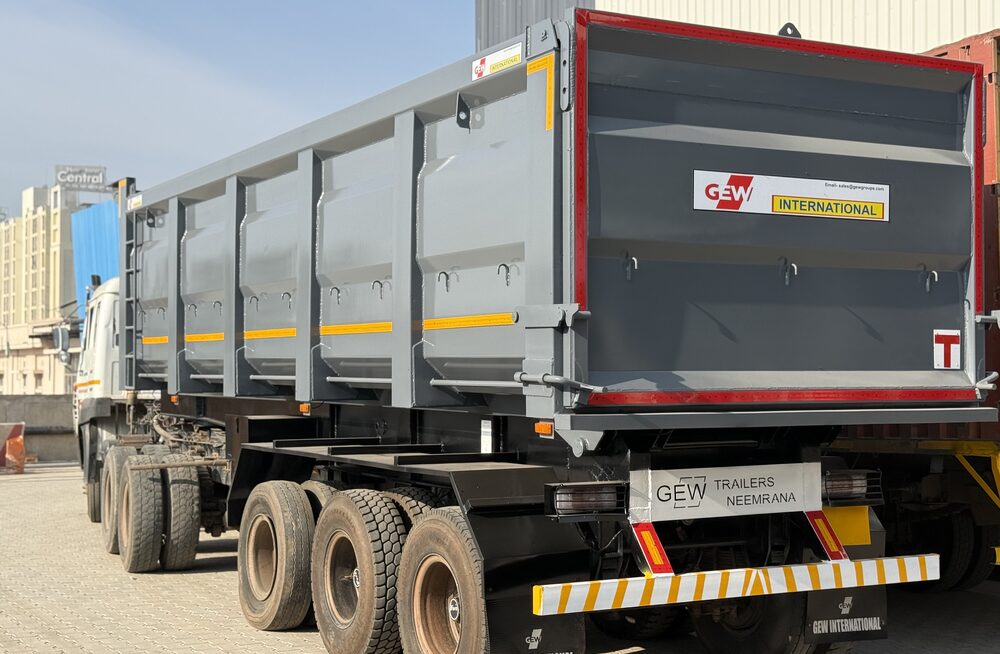

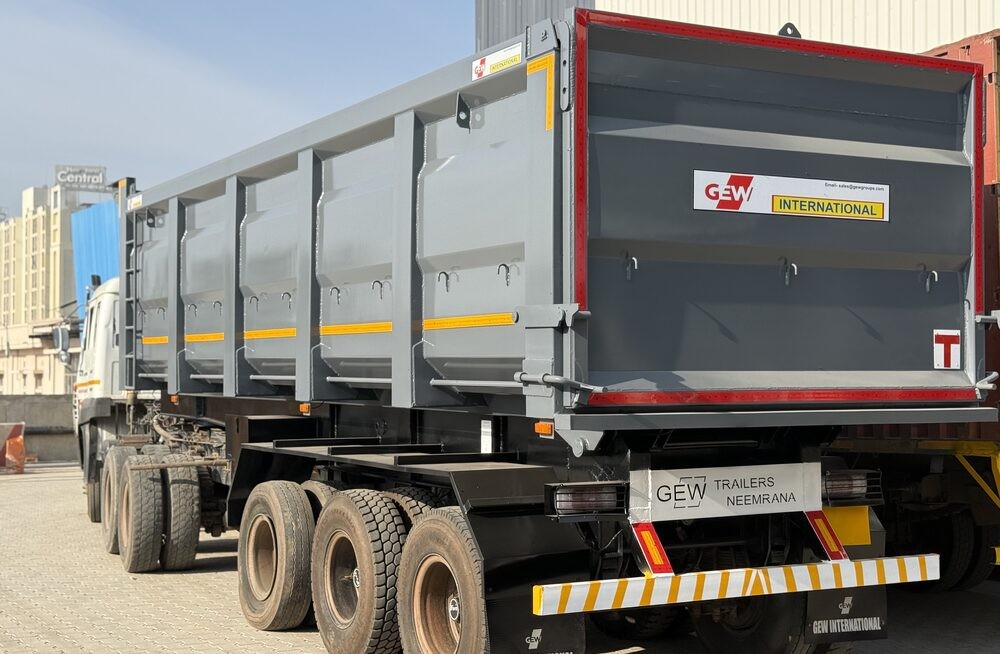

| Product Name | 3Axle Heavy Duty Tip Trailer |
| Size:- | 20CBM to 45CBM |
| Vehicle Weight (Unladen):- | 7.5T to 10Ton (As per Vehicle size) |
| Load Capacity:- | 49T, 52T,54T,55T Capcity |
| Chassis frame:- | Rolled Beam:- Sail/JSPL Make & HT Fabricated I section. |
| BODY MATERIAL:- | HT IS2062 Grade-Thickness 5mm/4mm & As per Customer demand |
| Customized Material | E350,BSK46,Sailma,Domax,Hardox,SS |
| HYDRAULIC KIT:- | Hyva/Hidromas/Wipro - FE & FC type Hyd. Cylinder with 4/5 Stroke, with PTO & Gear pump. |
| LANDING LEG:- | Telescopic 2 speed landing leg. |
| AXLES:- | 12T / 14T / 16T/18T (YORK/KROSS/TATA/FUWA/JOST/HDTPL/ADR/BPW) |
| KING PIN:- | IS : 6763 Part I (bolted / Welded)-2” king Pin |
| SUSPENSION:- | Heavy Duty Fabricated /Casted - Tridem , Tandem , Tandem + Lifting axle. (YORK/KROSS/TATA/FUWA/JOST/HDTPL/ADR/BPWGEW) |
| BRAKES:- | Wabco/York make Brake system with Tri-Axle, Tendem Axle, Lift Axle, Air Suspension, Mono Axle pneumatic. |
| ELECTRICAL:- | 24 V DC electrical system as per CMVR |
| WHEEL RIM:- | 10.00 x 20 – 16 PR/10R20 – 12 Nos. 7.50 x 20 – 12 Nos. |
| TYRE:- | APPOLO/ JK TYRE/VIKRANT/MRF/Others |
| OTHER FITMENT:- | SUPD, RUPD, Reflectors as per CMVR. |
| PAINTING:- | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting, Shade Customer Choice |
| Application:- | Cement Bags/ Loose Material/ Marble/ Coil/ Coal/Clinker/Aggregates/Iron Ore/Salt/Others |
| Customized Requirement:- | 1) ABS/EBS System Type Trailer 2) Brake -Knorr Bremse/Haldex 3) Paint as per Customer demand |
