Description

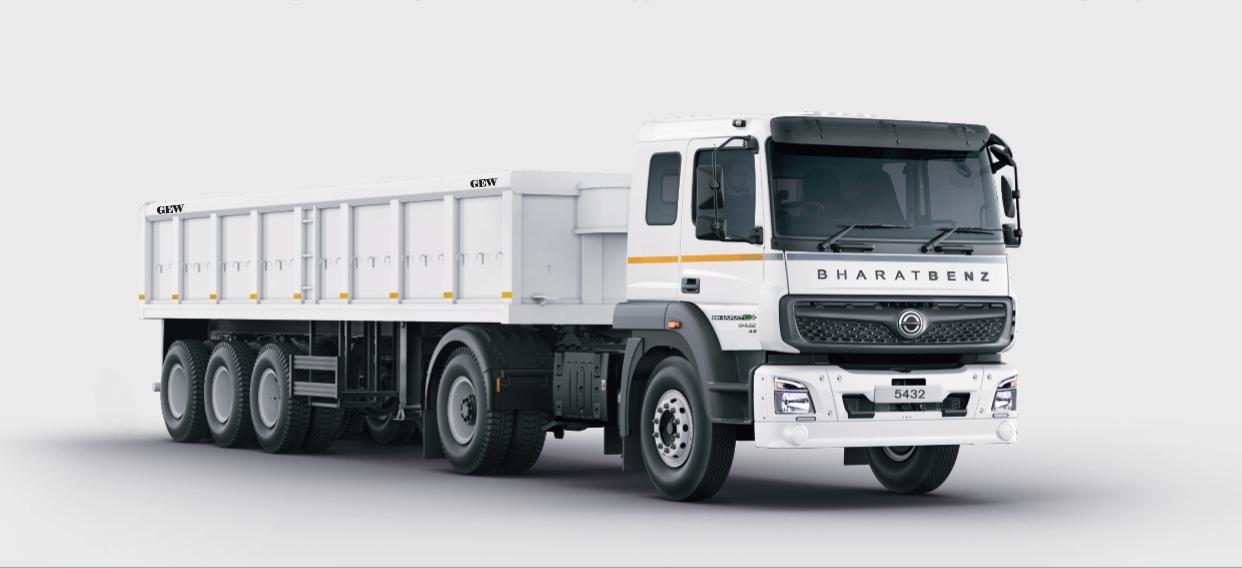

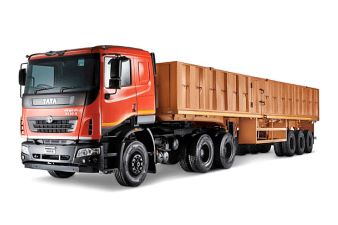

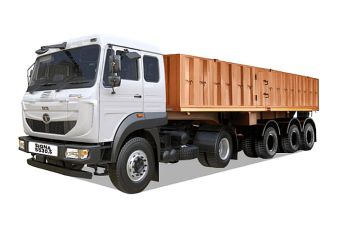

| Product Name | 3-Axle Side Wall Trailer |
| Specification | Length:- 26Ft 45Ft X Height:-2.5Ft to 7Ft |
| Type | Corrugated Panel and Plain Sheet Panel |
| Trailer Weight (Unladen):- | 6Ton-10 Ton (As per Customer) |
| Chassis frame:- | Rolled Main Beam-SAIL and JSPL Make Fabricated HT I-Section Structure:-ISMB 250 / ISMC 125 Channal. Platform : Cheq.Sheet 3mm/4mm/5mm MS sheetRolled Main Beam-SAIL and JSPL Make Fabricated HT I-Section Structure:-ISMB 250 / ISMC 125 Channal. Platform : Cheq.Sheet 3mm/4mm/5mm MS sheet |
| Landing Leg:- | Telescopic 2 speed landing leg/ Fabricated Tube Type |
| Axles:- | 12T / 14T / 16T / 18T (YORK/KROSS/TATA/FUWA/JOST/HDTPL/ADR/BPW) |
| King Pin:- | IS : 6763 Part I (bolted / Welded)-2” king pin |
| Suspension:- | Heavy Duty Tridem / Tandem /Tandem + Lifting combo axle. |
| Brakes:- | Wabco/York make Brake system with Tri-Axle, Tendem Axle, Lift Axle, Air Suspension, Mono Axle pneumatic and ABS/EBS system |
| Electrical:- | 24 V DC electrical system as per CMVR |
| WHEEL RIM:- | 7.50 x 20 and Customized |
| TYRE:- | APPOLO/ JK/CEAT/MRF/MICHLEN,CONTINETAL and Others (Nylon 10.00-20 & Radial 10R20-16PR) |
| OTHER FITMENT:- | SUPD, RUPD, Reflectors as per CMVR. |
| PAINTING:- | Shot Blasting(Std ASTM B117) and Primer and PU Painting &As per Customer requirement |
| Application:- | Cement Bags/ Loose Material/ Marble/ Coil/ Coal/Clinker/Aggregates/Iron Ore/Salt/Others |
| Prime Mover:- | AL, TATA, BHARATBENZ, EICHER, MAHINDRA ,MAN, VOLVO (4X2 & 6x4) |
